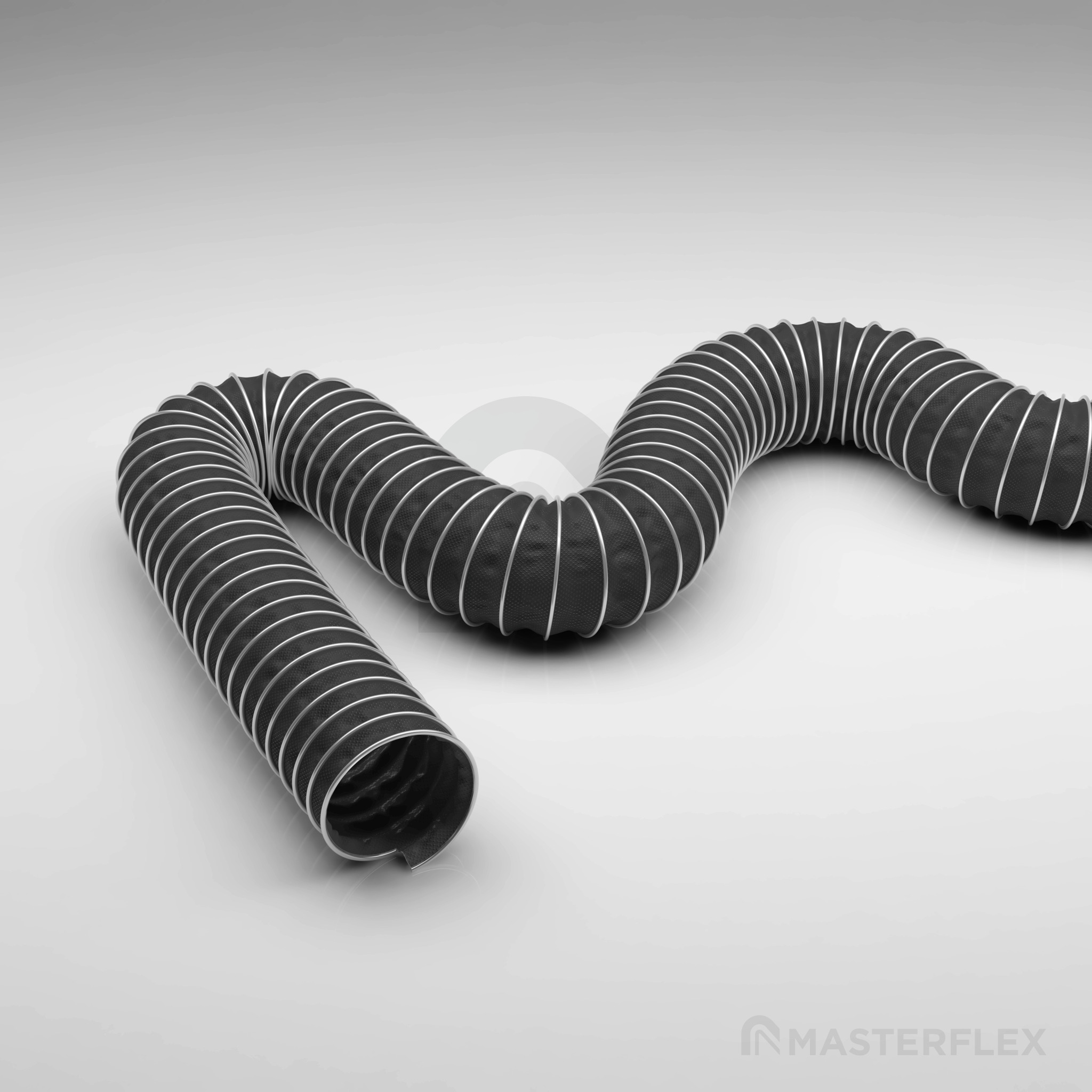

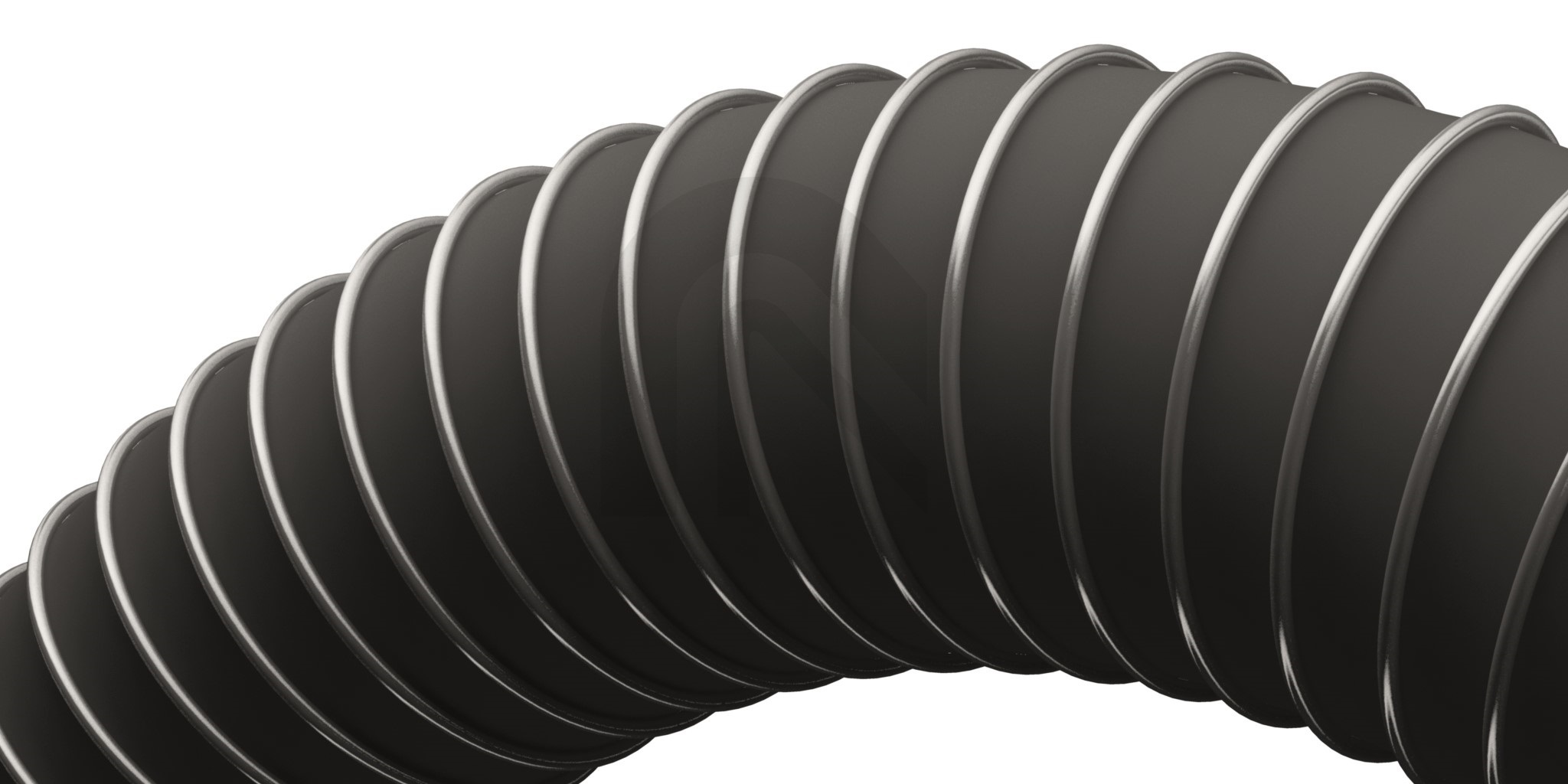

Master-Clip VINYL EL

Article master no: 000367

Suction & Blower hose made from PVC coated polyester fabric, electroconductive

View product information

Product configurator

Define parameters here and click button!

Product information

antistatic
electrically conductive
hydrolysis resistant
microbe resistant
compressible
very flexible
light
moderately pressure resistant

Suction & Blower hose made from PVC coated polyester fabric, electroconductive

Download Product Details

Short Info

Description, addition to product nameSuction & Blower hose made from PVC coated polyester fabric, electroconductive

Construction / Material

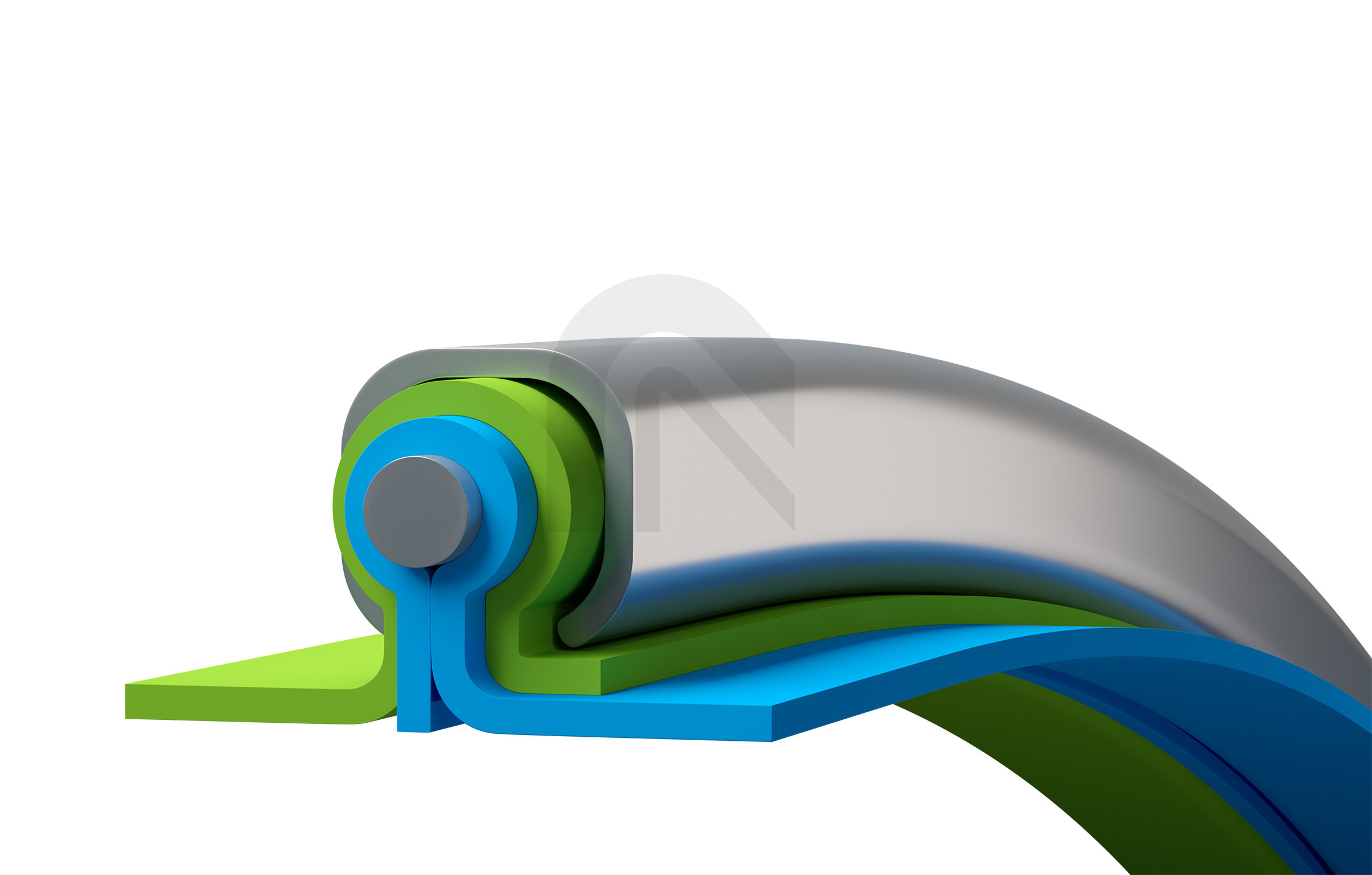

Type of constructionSpiral hose with clamping profile
Design of the helixmetal band, formed as a clamping profile
Material of the helixSteel strip, hot-dip galvanised
Design of the external spiraldesigned as an additional protective profile
Execution of the wallmade of electrically conductive material, coated, Coating in PVC
Material of the wallPolyester fabric
Specifications of the wallSurface resistance R₀ < 10⁶ Ohm

Properties

Specifications of the productaccording to TRGS 727 and ATEX 2014/34 EU
Chemical Propertiesatoxic, physiologically harmless, odourless and tasteless, good resistance to aggressive vapours
Mechanical Propertiescompressible approx. 1:6, Resistance to vibrations and mechanical-dynamic load (cycle operation)
Flexibilityvery flexible
Weightlight
Pressure Resistancemoderately pressure resistant
Colourblack

Operating Temperature

Temperature Range-20 to 70 °C
short-term maximum temperaturepeaks to 80 °C

Delivery Information

Delivery, type of productionOrder-related production

Application Areas

Areas of applicationVentilation & air-conditioning, Chemistry, Plastics

Customizing Options

optional item modification (on request)other lengths, other nominal widths, other colours, other spiral distance, with stainless steel spiral

Application areas

Ventilation & air-conditioning

Chemistry

Plastics

Supply variants

All data refer to a medium and ambient temperature of +20 °C.

Extended Article NumberNominal Size (DN)
in mm
Bending radius*
in mm
Weight
in kg/m
Operating pressure
in bar
Negative pressure
in bar
Max. Production length
in m
Stock Lengths
in m
Length (standard lengths available for order)
in m
In stock
000367:50:x50300.550.900.3120.00/3 / 6 / 10
000367:55:x55330.600.850.2620.00/3 / 6 / 10
000367:60:x60360.640.780.2220.00/3 / 6 / 10
000367:65:x65390.690.680.1920.00/3 / 6 / 10
000367:70:x70420.740.670.1620.00/3 / 6 / 10
000367:75:x75450.790.620.1420.00/3 / 6 / 10
000367:80:x80480.840.610.1220.00/3 / 6 / 10
000367:90:x90540.940.560.1120.00/3 / 6 / 10
000367:100:x100600.770.510.1020.00/3 / 6 / 10
000367:110:x110660.850.480.0820.00/3 / 6 / 10
000367:120:x120720.930.360.0720.00/3 / 6 / 10
000367:125:x125750.970.330.0620.00/3 / 6 / 10
000367:130:x130781.000.280.0620.00/3 / 6 / 10
000367:140:x140841.100.250.0520.00/3 / 6 / 10
000367:150:x150901.160.220.0420.00/3 / 6 / 10
000367:160:x160963.140.210.0420.00/3 / 6 / 10
000367:170:x1701023.330.190.0320.00/3 / 6 / 10
000367:175:x1751053.430.190.0320.00/3 / 6 / 10
000367:180:x1801083.520.170.0320.00/3 / 6 / 10
000367:200:x2001203.900.150.0320.00/3 / 6 / 10
000367:215:x2151514.180.130.0220.00/3 / 6 / 10
000367:225:x2251584.730.120.0220.00/3 / 6 / 10
000367:250:x2501754.840.100.0220.00/3 / 6 / 10
000367:275:x2751935.310.080.0120.00/3 / 6 / 10
000367:300:x3002105.780.070.0120.00/3 / 6 / 10
000367:315:x3152216.100.060.0120.00/3 / 6 / 10
000367:325:x3252286.250.060.0120.00/3 / 6 / 10
000367:350:x3502456.720.060.0120.00/3 / 6 / 10
000367:375:x3752637.190.050.0120.00/3 / 6 / 10
000367:400:x4002807.660.050.0120.00/3 / 6 / 10
000367:450:x4503608.600.050.0120.00/3 / 6 / 10
000367:500:x5004009.640.040.0120.00/3 / 6 / 10
000367:550:x55044010.490.040.0120.00/3 / 6 / 10
000367:600:x60048011.430.040.0115.00/3 / 6 / 10
000367:700:x70056010.840.030.0115.00/3 / 6 / 10
000367:800:x80064015.200.020.0115.00/3 / 6 / 10
000367:900:x90072017.100.020.0115.00/3 / 6 / 10

* Related to the inside of the hose bend | Subject to technical changes and color deviations.
