Spiral Hoses - Made in Germany
Whether transparent, abrasion-resistant, or flame-retardant—we have the right spiral hose for virtually any industrial application!
Schedule a consultationOur top sellers
Flexible Hose Solutions for Industry and Technology
Spiral hoses are indispensable components in industry when it comes to flexible yet robust hose solutions. Thanks to their characteristic spiral structure, they offer an exceptional combination of elasticity, dimensional stability, and space-saving design.
Spiral Hoses—Flexible All-Rounders
They can be easily extended and return to their original shape after use, making them particularly well-suited for applications with limited space or frequently changing work positions.
Versatile Applications
In addition, spiral hoses are characterized by their high resistance to mechanical stress. They are resistant to abrasion, pressure, and—depending on the material—chemical exposure as well. They are therefore suitable for a wide range of applications, such as in compressed air technology, mechanical engineering, or the food industry.
Request a QuoteMaterialsHose TypesColors
What is a spiral hose?
A spiral hose is a flexible hose characterized by its spiral-shaped structure. This design gives it high flexibility, elasticity, and dimensional stability. A key feature of spiral hoses is their integrated spiral reinforcement. Depending on the application, this reinforcement can consist of spring steel wire, stainless steel wire, rigid PVC, or plastic-coated materials. This design not only gives the hose its high flexibility but also ensures stability and resistance to kinking. Functionality is maintained even under heavy use.
Our Top Sellers in the Spiral Hose Category
Our most popular spiral hoses are synonymous with quality, reliability, and maximum practicality. Whether in industrial plants, workshops, or demanding production environments—our customers rely on products that maintain their performance over the long term and stand the test of daily use.
Master-PUR L Trivolution
Lightweight suction and conveyance hose for abrasive solids and gaseous media; permanently antistatic and flame-retardant in accordance with DIN 4102 B1.

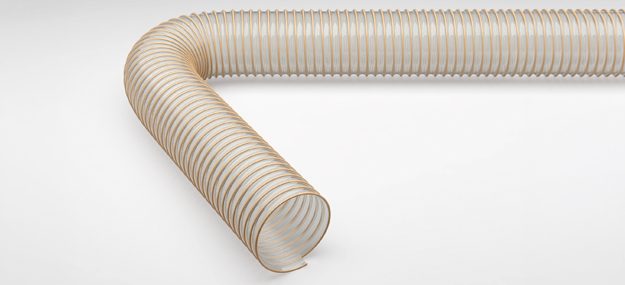

Master-PUR H Trivolution
Medium-duty conveyor and extraction hose for demanding applications, permanently antistatic and flame-retardant in accordance with DIN 4102 B1.

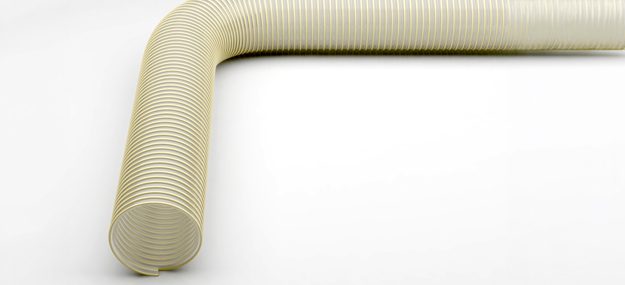

Master-PUR HX Trivolution
Heavy-duty transport hose with a reinforced spiral, particularly suitable for transporting extremely abrasive media and difficult-to-handle materials.

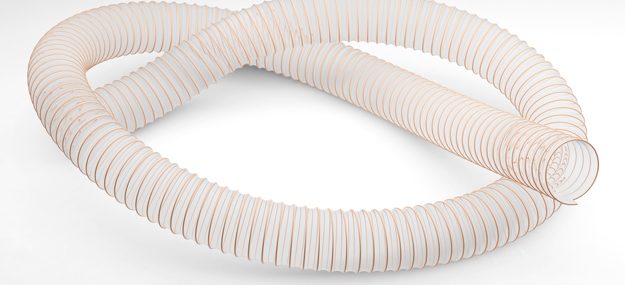

Flamex B-F se
Very lightweight and highly flexible suction and conveyor hose, flame-retardant in accordance with DIN 4102 B1, for transporting solids that cause abrasion.

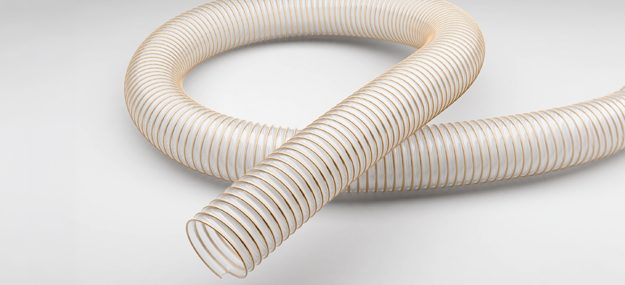

Flamex B se
Very lightweight, flexible conveyor and suction hose for transporting abrasive solids. Also suitable as a protective hose against mechanical stress.

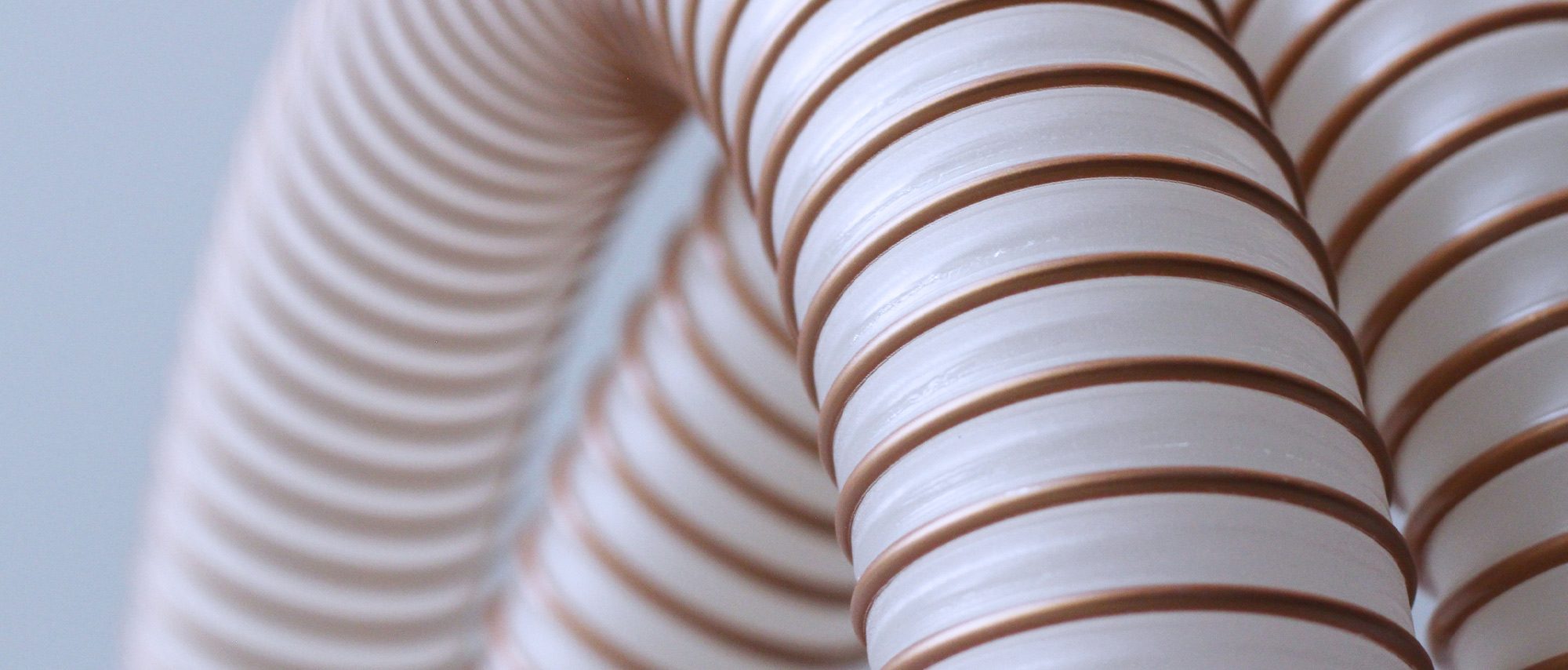

Master-PUR Performance
Heavy-duty suction and transfer hose for extremely abrasive solid, liquid, and gaseous media, featuring an absolutely smooth inner wall with no dead spaces.

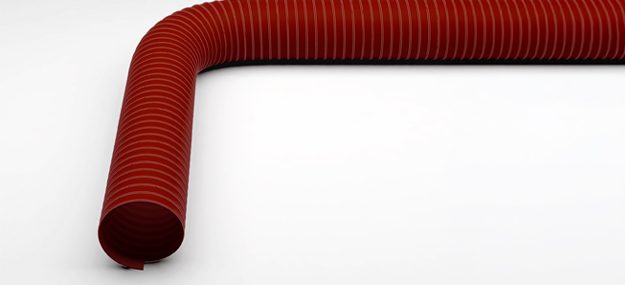

Master SIL 2
Double-layer medium- and high-temperature spiral hose, made from vulcanized fabric strips, suitable for temperatures up to +250 °C.

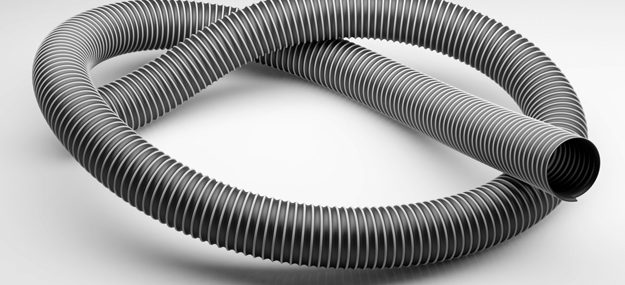

Master-PUR Santo SL
Antistatic and electrically conductive PU hose for steam extraction, air intake and exhaust in the engine compartment, or for conveying hot and cold air.

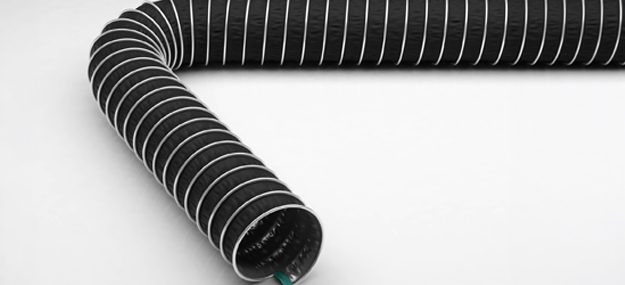

Master-Clip PTFE H EL
Flexible spiral hose suitable for suctioning corrosive fluids, up to +175°C, electrically conductive, double-layered.
What materials are typically used for spiral hoses?
We process technically sophisticated plastics, fabrics, and films into high-quality industrial hoses and innovative connection solutions. In doing so, we draw on many years of experience in the field of polymeric materials, as well as fabrics and films, and their processing.
PUR/PU
Most of the hoses used to extract and convey abrasive solids are made of high-performance polyurethane.
PVC
PVC is versatile. However, PVC's temperature resistance and abrasion resistance are significantly lower than those of polyurethane.

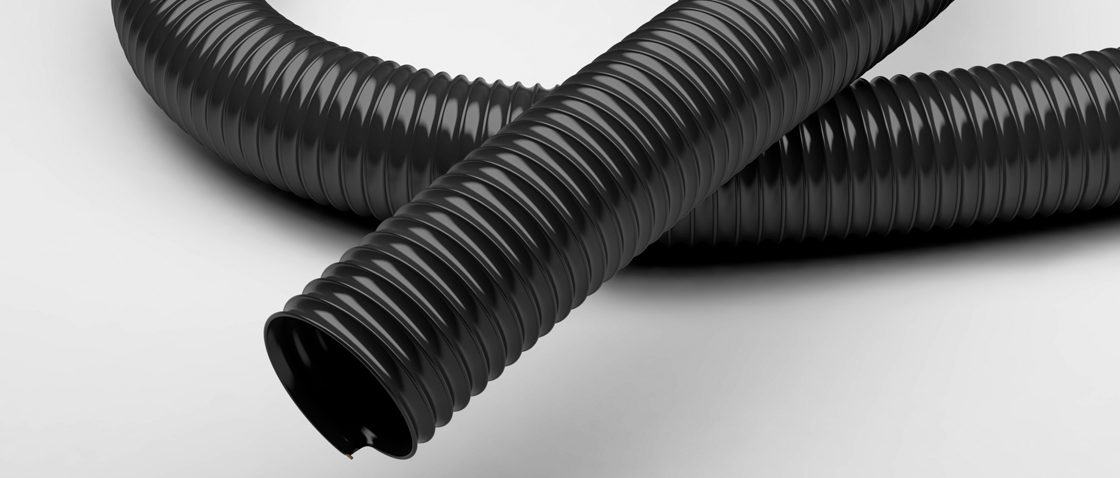

PE
Polyethylene (PE) is characterized by its high resistance to acids, alkalis, and chemicals. The material has much higher chemical resistance than PU.

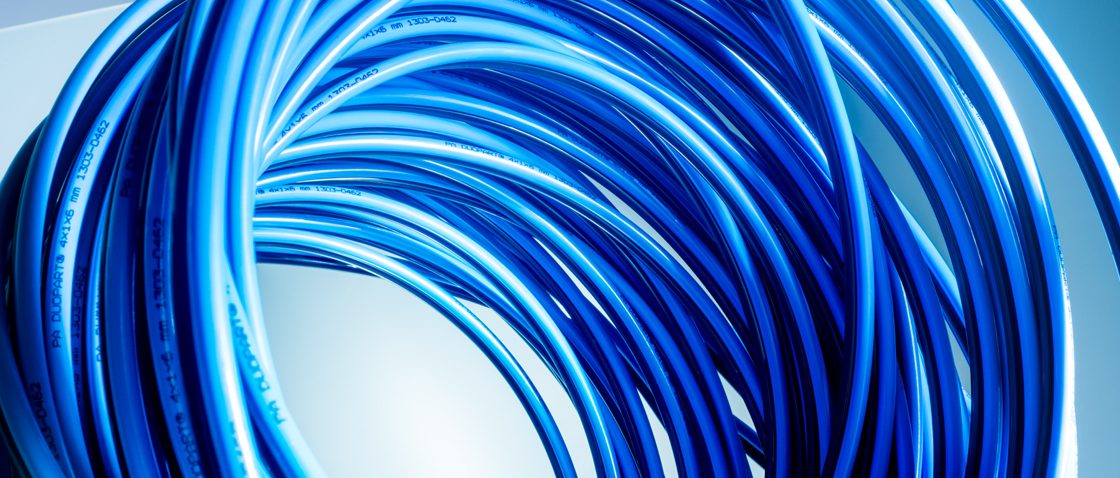

PA
Polyamide (PA) is characterized by excellent sliding and wear properties, dry-running capabilities, resistance to dirt, and chemical resistance.

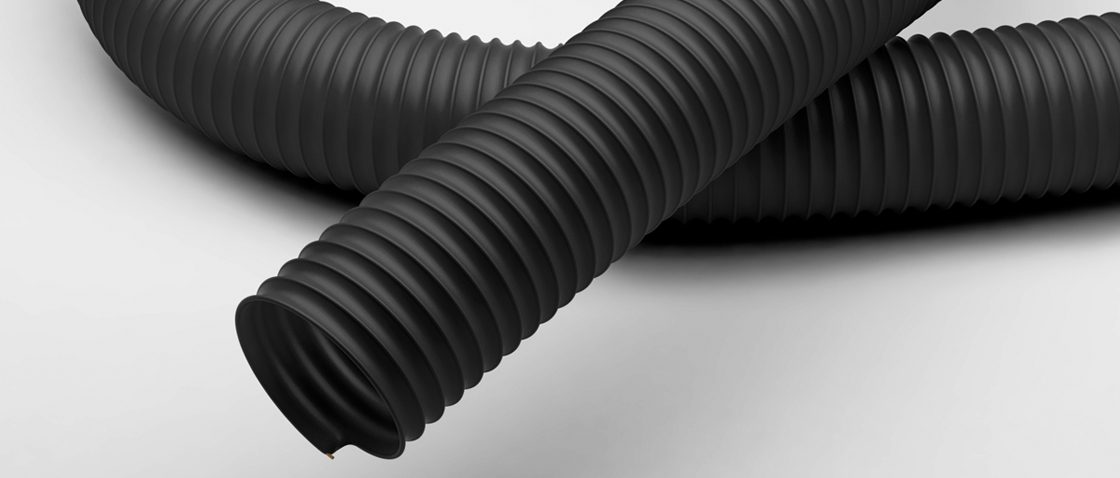

TPV
TPV is a special type of plastic belonging to the elastomer group (rubber-like materials) that combines the unique advantages of rubber and thermoplastics.
Which coiled hose is right for you?
When is a spiral hose suitable for contact with food, or is it food-safe? How does a spiral hose become UV- or heat-resistant? What colors are spiral hoses available in? What lengths and diameters are available? Our experts are happy to assist you with any questions you may have about spiral hoses.
What are the special characteristics of spiral hoses?
- High flexibility and bendability: They are extremely flexible and can be twisted without kinking, making them ideal for tight spaces.
- Kink resistance: The integrated spiral ensures consistent flow even at tight bends.
- Vacuum and pressure resistance: They are excellent for use as suction hoses as well as for medium- to high-pressure applications.
- Durability and abrasion resistance: Many spiral hoses are particularly resistant to pressure, abrasion, weather conditions, and chemicals.
- Retraction: Many models automatically retract to their compact form after use.
- Lightweight: Compared to other reinforced hoses, they are often lighter and easier to handle.
Spiral Hose with Support Coil
Strips of film and fabric—arranged in a helical pattern, welded together with overlapping seams, with an embedded support coil made of spring steel wire.
More information
The Right Hose Diameter for Your Application
The diameters of spiral hoses vary widely depending on the application. The specification usually refers to the inner diameter (ID). Diameters range from small nominal sizes (typically 10–13 mm and up) to large diameters in the range of 500 mm or more, depending on the specific hose type. Diameters are usually specified as the inner diameter in millimeters (DN—Nominal Diameter).
In addition to standard sizes, custom nominal diameters are often available upon request.
FAQs About Coiled Hoses
Here you'll find answers to the most important questions about spiral hoses. Learn more about their applications, materials, properties, as well as how to choose, maintain, and use them—and much more.
Do spiral hoses require a lot of maintenance?
No, spiral hoses generally require little maintenance. However, they should be inspected regularly for wear, cracks, or buildup to ensure a long service life and safe use.
How do I find the right coiled hose?
The selection depends on several factors, such as temperature resistance, pressure requirements, the medium (e.g., air, liquids, solids), and the location of use (indoor or outdoor). We recommend consulting with our experts.
In which areas are spiral hoses used?
Typical applications include: the food and beverage industry, the chemical industry, mechanical and plant engineering, agriculture and horticulture, and extraction and conveying systems
Are spiral hoses UV-resistant?
Yes, many of Masterflex's spiral hoses are UV-resistant and therefore ideal for outdoor use. They remain durable and resilient even under intense sunlight.
How heat-resistant are spiral hoses?
Heat resistance depends on the specific material. Many spiral hoses are designed for high temperatures and retain their shape and function even under continuous heat exposure. There are special versions available for particularly extreme temperature ranges.
Are spiral hoses food-safe?
Yes, Masterflex offers special spiral hoses that are food-safe and comply with applicable EU directives. These hoses are tasteless, hygienic, and ideal for transporting food and beverages.
What are the advantages of spiral hoses?
Spiral hoses stand out for their high flexibility, kink resistance, and durability. In addition, many types are heat-resistant, UV-resistant, and suitable for use in demanding conditions. This makes them ideal for both indoor and outdoor applications.
What types of spirals are there in spiral hoses?
With our spiral hoses, you have a choice—between a spiral made of spring steel wire, stainless steel wire, rigid PVC, or a plastic-coated spiral. The plastic sheathing protects the spiral from external mechanical stress. The spiral pitch can also be customized.
Masterflex - Numbers Speak Louder Than Words
Behind every key figure lies experience, innovative strength, and the highest standards of quality. With precise processes, state-of-the-art technology, and a clear focus on efficiency, we create solutions that deliver lasting value. Not just through words, but through results that stand the test of time.
Why Masterflex?
Trust is built not through words, but through verifiable results. With 40 years of market experience, we stand for continuity, stability, and sustainable business success. Our customers benefit from a partner that thinks long-term and acts reliably. More than 600 employees across our group of companies work every day to uphold this trust—with professional expertise, dedication, and a clear commitment to quality.
As an employer, we have been rated “very good” and awarded the TOP Employer seal by the German Institute for Quality Standards and Testing (DIQP).
We have been recognized as a TOP Innovator on multiple occasions. This makes us one of Germany's most innovative medium-sized companies.
Once again, we have been named "WorldMarket Leader Champion" by the University of St. Gallen—as reported in *WirtschaftsWoche*.
Are you looking for the right spiral hose?
Do you have questions about our products, custom solutions, or specific applications and requirements? Our experts are happy to assist you with any questions you may have about spiral hoses.
Please fill out the contact form or simply give us a call at +49 209 97077 0.
